| Figure 11 displacement.versus time |

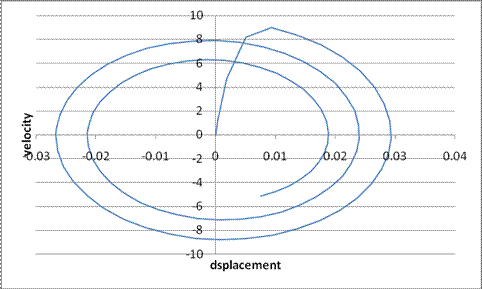

| Figure 11 is a classic state space plot where the important variables displacement and velocity are plotted. For an undamped solution the curve would be a single circle if the velocity axis is scaled by wn. Again, curve needs more interpretation. |
 | |  |
| | |
