Coulomb Damping - Page 6

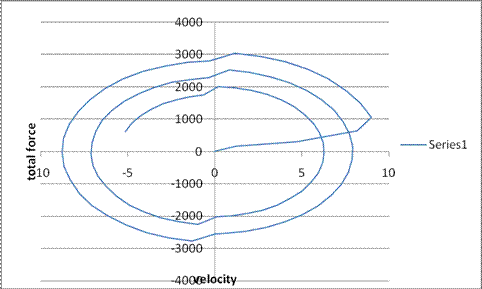

Figure 10 total force.versus velocity
Figure 10 shows the interesting hysteresis curve caused by the damping. The
initial impulse takes the point onto an elliptical decay spiral. Smooth arcs are
present with slope perturbations in between. This figure needs to be
researched some more.
